How Can Laser Scanning and BIM Benefit MEP Contractors?

What is MEP Installation?

Chances are, when you walk into a building and the air temperature is perfect, the lights turn on automatically, and water flows immediately from any tap, you don’t even notice – because that’s the way effective MEP planning, installation, and management works. None of those unnoticed occurrences happens by chance

Successful mechanical, electrical, and plumbing (MEP) installation requires a structured and hands-on approach to integrate critical systems into a building’s framework. Contractors prioritize safety, quality assurance, and compliance with local codes and industry regulations to ensure systems operate reliably throughout the lifecycle of a building.

Before installation starts, the general contractor must receive accurate as-built documentation to inform MEP designs. If current documentation is unavailable or outdated, the contractor then partners with a 3D laser scanning company to capture precise site data. This includes building dimensions, elevations, and distances important for layout plans.

At the same time, the contractor must identify the locations of underground utilities, which include gas lines, water pipes, and electrical cables, to reduce risk and support design coordination. Existing Conditions’ parent company, GPRS, conducts non-destructive, 99.8% accurate on-site investigations and delivers updated utility maps, delivered digitally via SiteMap® (patent pending), our secure, cloud-based GIS software platform.

With verified site data at the palm of their hand, the contractor can develop MEP routing plans and coordinate with trade partners. The next step is site preparation, which is critical for any construction project because you verify that the land is safe for building. The main objective is to establish a structurally sound foundation, which is vital to the project’s viability and prevents risk like structural instability and differential settlement. Adequate site preparation is important because it prevents issues like cracks or space shifts and lays a sturdy foundation. Rocks or aging structures are also cleared so it does not interrupt construction.

Site preparation includes:

• Clearing hurdles and verifying that MEPs are located around utilities
• Installing temporary scaffolding or supports
• Make sure that the site is clear of hazardous materials like debris, to keep workers safe
• Studying soil composition because different soils influence the building’s durability

Retrieving the relevant permits and approvals from local authorities prior to construction is also critical. These credentials confirm that the project adheres to all laws and regulations, which mitigates the risk of delays or legal obstacles.

‍

Explaining The Rough-In Phase

Trade contractors then begin rough-in, where they install system lines like ductwork, plumbing, and electrical wiring. Final connections are held off until later stages in the project lifecycle because installations need to be inspected, tested, and approved.

• HVAC: Install ductwork, air handlers, and ventilation components per the design layout
• Electrical: Place conduit, wiring, panels, and distribution gear to establish the power network
• Plumbing: Fit piping, valves, fixtures, and pumps to support water, gas, and drainage systems

Installing these components earlier in the project lifecycle helps to identify and resolve any spatial constraints before the finishing stage. Throughout this phase, contractors coordinate closely with structural and architectural teams to ensure everything fits together and is compatible in the space available.

After the rough-in phase is complete, contractors perform system testing and inspections to validate performance and code compliance. Once approved, they finalize installation and make necessary changes.

‍

How Does 3D Laser Scanning Capture Existing Site Conditions?

To accurately document existing site conditions before MEP design begins, contractors leverage 3D laser scanning reality capture services. This method ensures that new MEP systems align seamlessly with the current structure.

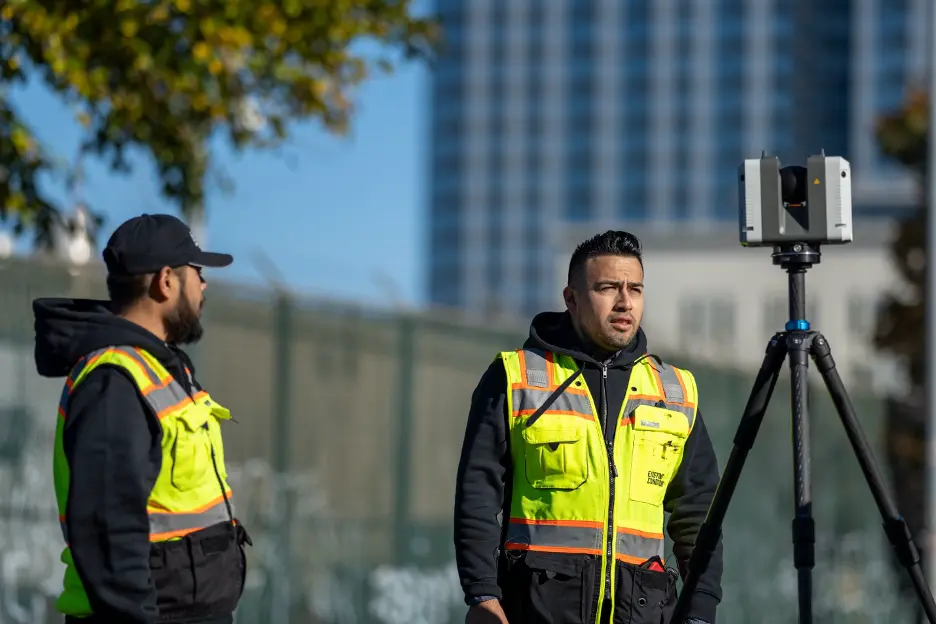

3D laser scanners utilize LiDAR (Light Detection and Ranging) technology, which emits laser pulses to measure distances and collect millions of three-dimensional data points. Each point is transformed into an XYZ coordinate, and together they form a point cloud that digitally reconstructs the physical environment in three dimensions.

The resulting 3D model provides construction-grade measurements that are important for layout planning and system coordination.

Existing Conditions delivers this data to contractors, enabling them to make informed design decisions based on highly accurate as-built data. This approach reduces the likelihood of installation errors and supports a smoother construction process.

‍

How Can MEP Contractors Benefit from 3D Laser Scanning?

3D laser scanning documents existing site conditions, supports clash detection, enhances spatial layout planning, verifies system placement, and provides ongoing construction records for MEP contractors.

Accurate As-Built Documentation: Laser scanning provides a true-to-condition record of the existing site. This level of accuracy ensures that MEP systems are designed to fit within the actual structure, which reduces the risk of dimensional errors and minimizes the need for rework during installation.

Clash Detection: Point clouds generated from scans can be overlaid with MEP design models to identify conflicts. This allows contractors to detect and resolve clashes between systems and structural or architectural elements before construction begins, which minimizes costly delays and change orders.

Spatial Planning and Layout Optimization: With precise measurements of available space, engineers can plan system layouts that maximize space use and minimize interference. This leads to a faster installation process and saves money on designs.

Upgrades or Modifications: In renovation or retrofit projects, 3D laser scans document the intricate details of the existing MEP infrastructure. This enables new components to be integrated with confidence into the current systems, fitting seamlessly into the existing structure.

Construction Verification: During the construction process, contractors can compare scan data to the design models to confirm that systems are designed according to specifications. Any discrepancies from the plan become immediately visible, which allows for quick adjustments and quality control maintenance.

Progress Monitoring and Documentation: Laser scanning also supports progressive capture documentation, by documenting the state of the project at various stages. This visual record helps track progress, verify milestones, hold team members accountable, and provide a reliable reference for future maintenance or ongoing facility management.

By partnering with Existing Conditions, contractors gain access to highly accurate site data that improves coordination, reduces risk, and improves the overall quality of MEP installations.

‍

How is a 3D Building Information Model Created?

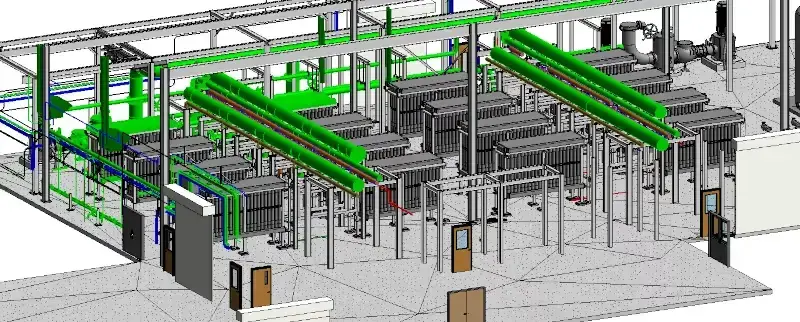

After a building or site is scanned using reality capture technology, the scan data is turned into a digital model called a Building Information Model, or BIM. A 3D BIM model gives an accurate digital replica of a building or site, which shows how different parts connect, including layout, materials, manufacturer details, property information, and more.

Existing Conditions delivers BIM models to our clients from the processed point cloud data. The 3D BIM model lets general contractors see the building in elements or layers, and they can see how they fit into one, finalized structure. General contractors can view the walls, windows, doors, or other parts and plan for MEP installation.

This model helps general contractors plan where to place mechanical, electrical, and plumbing systems. It also helps them avoid issues by showing how all the parts of the building work together before construction begins.

‍

How Can MEP Contractors Benefit from 3D BIM Models?

A 3D BIM model provides the following benefits for MEP system installation.

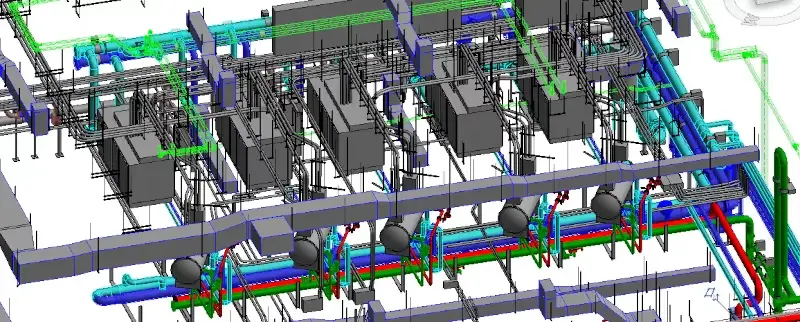

Design Planning: BIM models created from 3D laser scan data show detailed layouts of MEP systems like ductwork, pipes, conduits, and electrical systems. These models help contractors see how the MEP systems will fit inside the existing building before installation begins.

Clash Detection: BIM software can spot conflicts where MEP systems might run into walls, beams, or other systems. Finding these issues early helps avoid delays and costly change orders during construction.

Coordination: A BIM model provides a digital twin of the building so that the project team all work from the same sheet of music. Architects, engineers, and contractors can work together in one shared model to ensure that MEP systems are combined seamlessly with the comprehensive building design.

Quantity Takeoff and Cost Estimation: Based on the 3D model, BIM software can deliver precise quantity takeoffs and cost estimates for MEP elements. This allows MEP contractors to plan installations precisely, stay within budget, and make sure materials are ordered in the correct quantities.

Prefabrication: BIM allows MEP engineers to design prefabrication systems that can be built off-site. This approach improves quality control, decreases installation time, and lowers labor costs because the fabrication of MEP components is planned in a controlled environment.

Construction Sequencing: Contractors can use BIM to plan the order of MEP system installation. By using a virtual model of the MEP installation design plan, contractors can improve workflow efficiency, keep their workers safe, and detect any potential issues prior to construction.

Facilities Management: BIM models support ongoing facilities management after construction by storing detailed information about MEP systems. Facility managers can use the model to locate equipment, track maintenance schedules, and manage building operations more efficiently throughout the building’s lifecycle.

Finish Drawings: A 3D BIM model can capture the final state of the project, including any modifications or deviations from the original plans or specifications that occurred throughout the construction process. This model serves as a reliable reference for building owners, facility managers, and maintenance teams because they have situational awareness of the layout, configuration, and components of the completed structure. This information supports ongoing maintenance, future repairs, and renovation plans.

3D BIM models are transforming MEP system installation, incorporating intelligence, efficiency, and safety to project completion.

‍

Why Choose Existing Conditions?

Mechanical, electrical, and plumbing (MEP) systems are the lifelines of any building. Their successful integration relies on one important factor: data accuracy. At Existing Conditions, we help clients complete seamless MEP installations by starting with the most accurate foundation, using construction-grade 3D laser scan data from detailed as-built documentation.

Before installation begins, Existing Conditions uses 3D laser scanning to capture every detail of your site, interiors, and exteriors. Our high-resolution LiDAR scans collect millions of data points, which are processed into point clouds and precise building dimensions. This data forms the foundation for CAD drawings and BIM models, to help you design and install every MEP system component with confidence.

‍

Architects, builders, engineers, developers, and facility managers, trust us to deliver digital representations of the as-built environment with unparalleled accuracy and efficiency. Our services, including 3D laser scanning and BIM modeling, enable building industry professionals to make informed design decisions based on the most accurate data available.
